Magnetic Induction

Automatic Voltage Stabilisers

OIL IMMERSed | Brushless TECHNOLOGY

Magnetic Induction

For the toughest
of applications

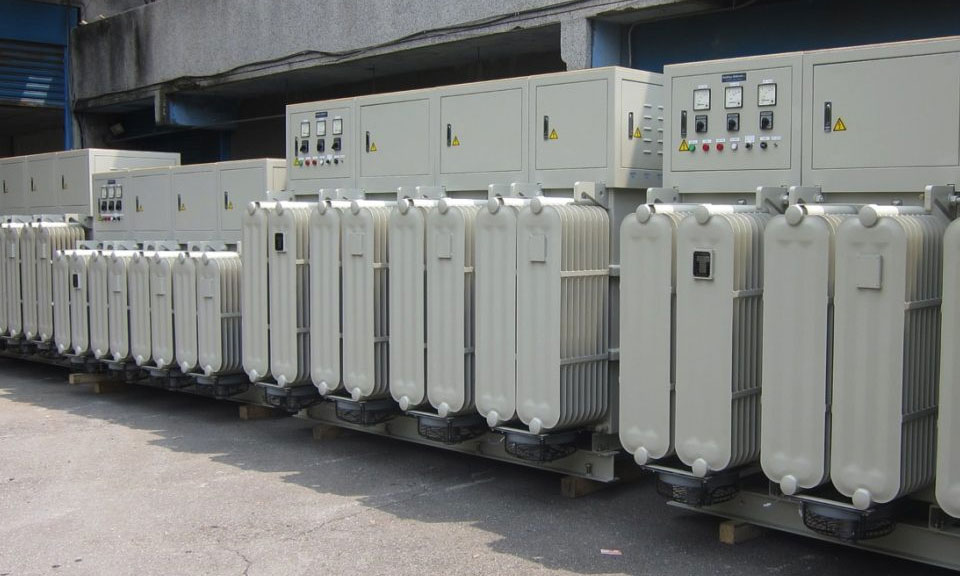

This highly robust magnetic induction design is ideal for some of the world’s most challenging environments. Far exceeding industrial standards, the IVSI Series Automatic Voltage Stabiliser delivers maximum reliability, making it the Gold Standard in power protection.

200KVA to 3,000KVA
Brushless Technology
Virtually Maintenance-Free

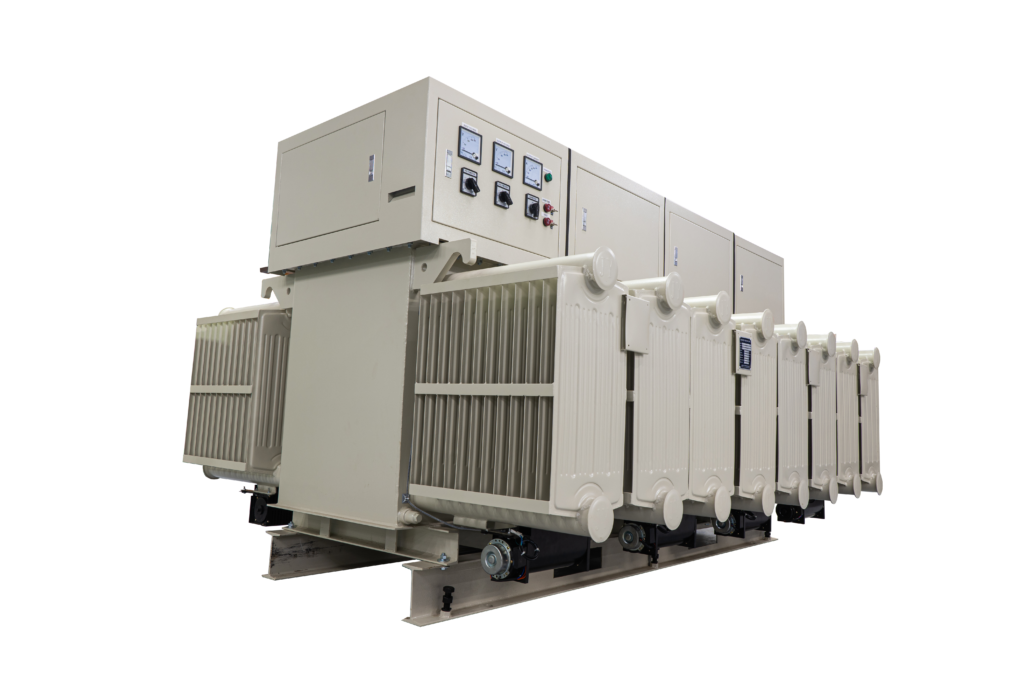

Oil Immersed Cooling

Engineered to go all out,
All the time.

Size matters. we build up to 3,000kva.

Boasting a massive capacity range, our custom built Magnetic Induction Automatic Voltage Stabilisers cater up to 3,000KVA loads along with a wide input swing of up to ±30% voltage tolerance.

magnetic induction, brushless technology.
A maintenance-free solution.

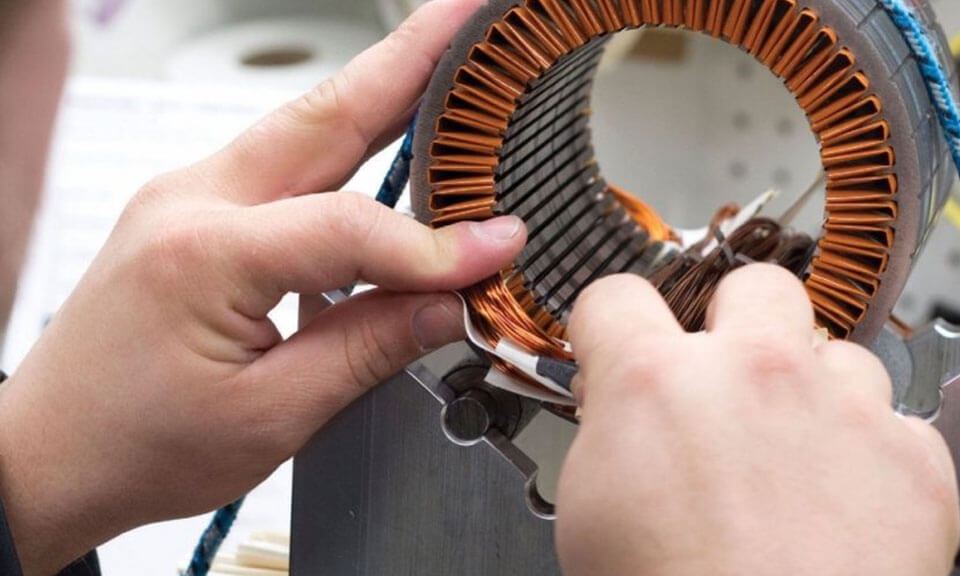

Ashley Edison Magnetic Induction Voltage Stabilisers utilises a rotor and stator design principle to amplify or reduce the magnitude of the voltage in a series transformer winding, regulating and maintaining a constant output voltage. This concept results in a highly reliable and virtually maintenance-free voltage stabilisation solution.

oil immersion cooling

Significantly enhances performance and cooling efficiency for industrial-grade voltage regulation and power protection.

Also available in Single Control Module.

For the load-balanced 3 Phase 3 Wire systems, the IVS Magnetic Induction Series is an ideal economical option and also in terms of physical size, a highly compact solution.

Technical Features

INDEPENDENT PHASE CONTROL

Independent phase voltage sensing and control to ensure the individual phase voltages remain stable, regardless of load unbalance.

Broad input voltage tolerance

From ±10% up to ±30% input voltage swing.

Inbuilt High Overload Capability

Ideal for loads with an inherent initial high current draw on startup.

precision voltage regulation

Output voltage accuracy ±1.5%.

Phase Failure & Reversal Protection

Audible alarm in the event of phase failure or reversal.

TRANSIENT VOLTAGE SURGE SUPPRESSION

Protects loads against harmful high-energy surges, transients and spikes.

Over / Low Voltage alarm

Ability Audible alarm in the event of the supply voltage going outside the input voltage window.

Lightning Surge protection

Protection against extremely high voltage surges and transients caused by lightning strikes on the supply line.

volt-free remote monitoring contacts

With RS-485 interface or Mimic Panel option.

cloud-based data system analysis

Real-time wireless applications for Measurement and Verification of energy and resource consumption.

COMPLIANT WITH INTERNATIONAL STANDARDS
ISO 9001:2015 | CE Mark | BS EN 55022 | BS EN 61000
BS EN 60529 | CE MARKED

Product FINDER

Three Phase | magnetic induction design

IVSI-H-3P4Wire
Magnetic Induction AVR
IVS-HD-3P3Wire
Magnetic Induction AVR
MVSI-H-3P4Wire
Magnetic Induction AVR
