VARIABLE TRANSFORMERS

accurate & reliable voltage control

Manual &
Motorised Design

For a diverse variety of applications from Quality Control Testings to Low Voltage Performance Evaluation, Ashley-Edison’s endurable range of Variable Transformers deliver an efficient & reliable method of varying output AC voltages from 0 to 117% of line voltage.

3AMPS to 800AMPS
up to 1,000vac
input voltage
adjustable output voltage 0~117%
stepless voltage control

RELIABLE & EFFICIENT
VOLTAGE CONTROL​

low operating torque

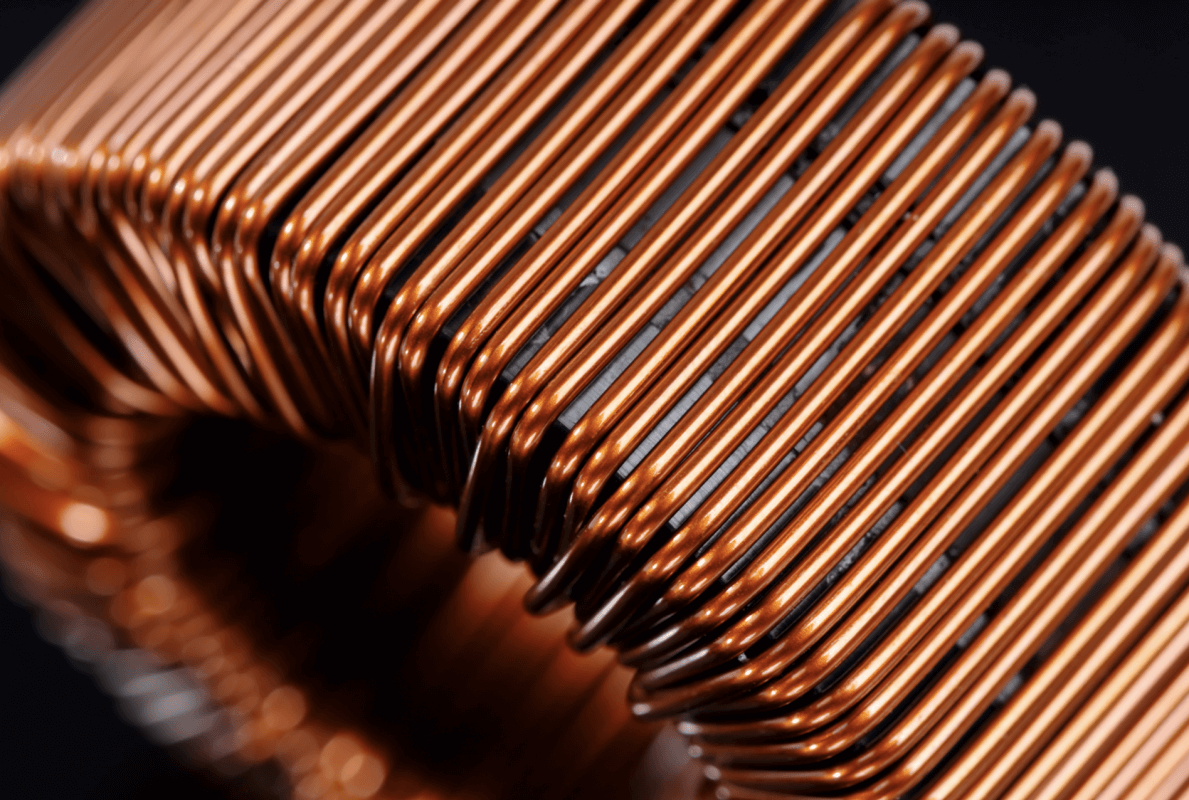

All Ashley-Edison Variable Transformers are built with an ultra smooth commutator surface and operates with optimum contact pressure of the brush on the commutator. Combined with firm positioning of the coil and internal components, this ensures delivery of low operating torque.

high efficiency and
excellent regulation

With extremely small power loss attributes, Ashley-Edison Variable Transformers deliver an efficiency of 98% or better and negligible variations in output voltage, from no load to full load.

diverse variety of applications

Typical use of a Variable Transformers include quality control testing, electronic equipment burn-in, low voltage performance evaluation, DC rectifier/regulator analysis or other industrial and engineering applications.

Technical Features

input voltage

+6% of nominal (i.e. 240V models are continuously rated at 254V)

SURGE RATING

10x max current rating for 1 second
3x max current rating for 60 seconds
2x max current rating for 5 minutes

ADJUSTABLE OUTPUT VOLTAGE

Continuously variable from 0 to 117% of input voltage.

EFFICIENCY

More than 98%.

Power Factor

Any

FREQUENCY

47Hz to 60Hz

volt-free remote monitoring contacts

With RS-485 interface or Mimic Panel option.

cloud-based data system analysis

Real-time wireless applications for Measurement and Verification of energy and resource consumption.

COMPLIANT WITH INTERNATIONAL STANDARDS
ISO 9001:2015 | CE Mark | BS EN 55022 | BS EN 61000
BS EN 60529 | CE MARKED

Product FINDER

SINGLE PHASE
variable transformer

AE-HB

3Amps ~ 80Amps

  • Input: 220V / 230V / 240V
  • Output: 0V~257V / 269V / 280V
  • Indoor IP20 Enclosure

AE-LB

3Amps ~ 80Amps

  • Input: 110V / 115V / 120V
  • Output: 0V~129V / 134V / 140V
  • Indoor IP20 Enclosure

MAE-HO

3Amps ~ 80Amps

  • Input: 220V / 230V / 240V
  • Output: 0V~257V / 269V / 280V
  • Indoor IP20 Enclosure / Open Type

mae-lo

3Amps ~ 80Amps

  • Input: 110V / 115V / 120V
  • Output: 0V~129V / 134V / 140V
  • Indoor IP20 Enclosure / Open Type
THREE PHASE
variable transformer

ae-3-Hb

3Amps ~ 60Amps

  • Input: 380V / 400V / 415V
  • Output: 0V~445V / 468V / 485V
  • Indoor IP20 Enclosure
  • Optional Input Circuit Breaker & Digital Meters

AE-3-lB

3Amps ~ 60Amps

  • Input: 190V / 200V / 208V
  • Output: 0V~222V / 234V / 243V
  • Indoor IP20 Enclosure
  • Optional Input Circuit Breaker & Digital Meters

AE-3-HB-480

3Amps ~ 60Amps

  • Input: 440V / 460V / 480V
  • Output: 0V~515V / 538V / 562V
  • Indoor IP20 Enclosure
  • Optional Input Circuit Breaker & Digital Meters


mAE-3-HB-dm-cb

10Amps ~ 150Amps

  • Input: 380V / 400V / 415V
  • Output: 0V~445V / 468V / 485V
  • Indoor IP20 Enclosure / Open Type
  • Input Circuit Breaker & Digital Meters fitted as standard


MAE-3-lB-DM-CB

10Amps ~ 150Amps

  • Input: 190V / 200V / 208V
  • Output: 0V~222V / 234V / 243V
  • Indoor IP20 Enclosure / Open Type
  • Input Circuit Breaker & Digital Meters fitted as standard


MAE-3-HB-DM-CB-480

10Amps ~ 150Amps

  • Input: 440V / 460V / 480V
  • Output: 0V~515V / 538V / 562V
  • Indoor IP20 Enclosure / Open Type
  • Input Circuit Breaker & Digital Meters fitted as standard
